Simplex GSA4098-9792

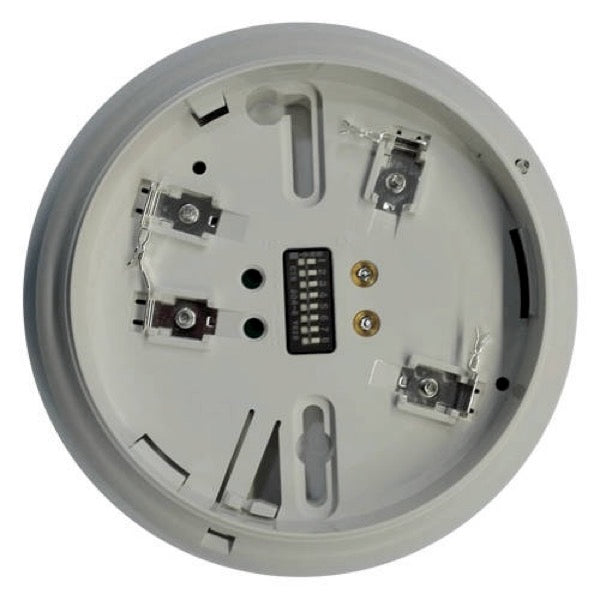

Simplex GSA4098-9792 Detector Base SSD Sensor

Addressable Standard Sensor Base (SSD) for use with Simplex TrueAlarm photoelectric, ionization, or heat detector heads. Flanged design with 4.875-inch diameter supports snap-in detector installation and allows sensor substitution during building construction. Integral addressable electronics monitor sensor status every four seconds.

Key Features:

• Addressable Electronics: Integral IDNet or MAPNET II addressable circuitry with dedicated SLC address

• Sensor Compatibility: Works with photoelectric, ionization, or heat detector sensors

• Monitoring Interval: Status transmitted every four seconds to control panel

• LED Indicator: Red LED flashes during normal operation (pulsing) or steady on during alarm or trouble

• Address Configuration: DIP switch block for field programming of SLC address

• Mounting: Flanged snap-in design for standard mounting

• Panel Compatibility: Works with 4010, 4020, 4100, 4100+, 4100U, 4100ES, 4008, and 2120 control panels

• Communications: IDNet and MAPNET II signaling line circuit support

• Construction Benefits: Allows detector head substitution without replacing base during installation
