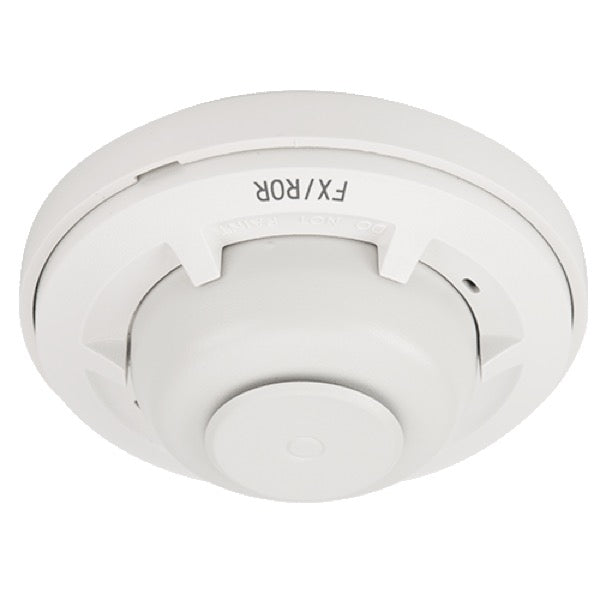

System Sensor 5604

The System Sensor 5604 is a mechanical heat detector for fire alarm systems. It provides fixed-temperature detection at 194°F for property protection applications where smoke detectors are not appropriate. The detector continuously monitors air temperature and triggers an alarm when the temperature rises above the set point, providing low-cost, reliable heat-based fire detection.

Key Features

• Fixed-temperature heat detection at 194°F (90°C)
• Mechanical thermal element design for reliability
• Single-circuit configuration for hardwired fire alarm systems
• Low-cost property protection solution
• Compatible mounting to standard electrical boxes
• Reversible mounting bracket permits flush and surface-mount installations

Technical Specifications

• Alarm Point: 194°F (90°C) fixed-temperature
• Type: Single-circuit, mechanical heat detector
• Weight: 6 oz (170 g)
• Dimensions with bracket: 1.69 inches height x 4.57 inches diameter
• Mounting: 1-gang and octagonal backboxes, 4-inch square backboxes with plaster ring
• Bracket: Reversible for flush or surface mounting

Certifications

• UL Listed fixed-temperature heat detector
• Approved for hardwired fire alarm systems
