Condition: New

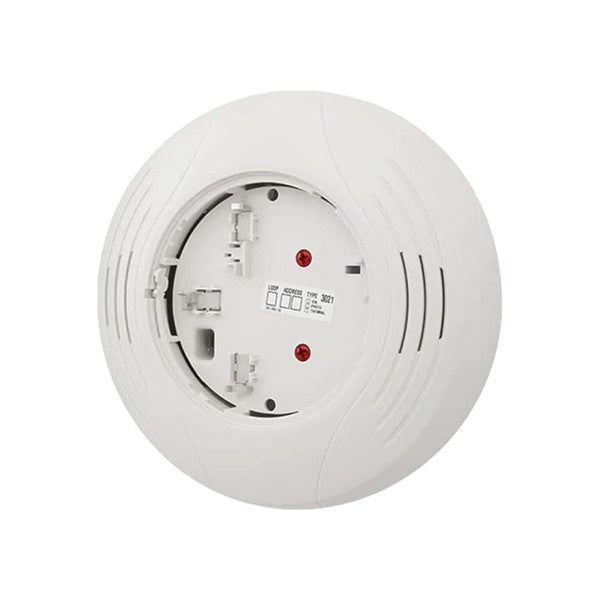

System Sensor B200S-WH
System Sensor B200S-WH
Detector Base Sounder Intel for Velociti
Regular price
$60.99
Sale price
$60.99
Regular price
Shipping calculated at checkout.
In stock!
The System Sensor B200S-WH is an intelligent addressable sounder base, in white, that adds event-driven audible signaling right at the detector location. It shares the mounted detector's address while operating as its own unique device type on the signaling line circuit (SLC), producing ANSI Temporal 3, ANSI Temporal 4, continuous, marching, or custom tones.
Key Features
- Intelligent addressable sounder base compatible with System Sensor detector heads
- Selectable high or low volume audible output
- Uses the LiteSpeed protocol; compatible with FlashScan, Velociti, and LiteSpeed communications
- Mounts to 4" square (with or without plaster ring), 4" octagon, 3-1/2" octagon, single-gang, or double-gang boxes
Technical Specifications
- SLC voltage: 15-32 VDC; SLC standby current: 300 uA max (base only)
- External power supply: 16-33 VDC; external standby current: 500 uA max
- Alarm current: 35 mA max (high volume), 15 mA max (low volume)
- Sound output: greater than 85 dBA (high volume) or greater than 75 dBA (low volume), measured at 10 feet in a UL reverberant room at 24V
