System Sensor B200SR-WH
System Sensor B200SR-WH
In stock!

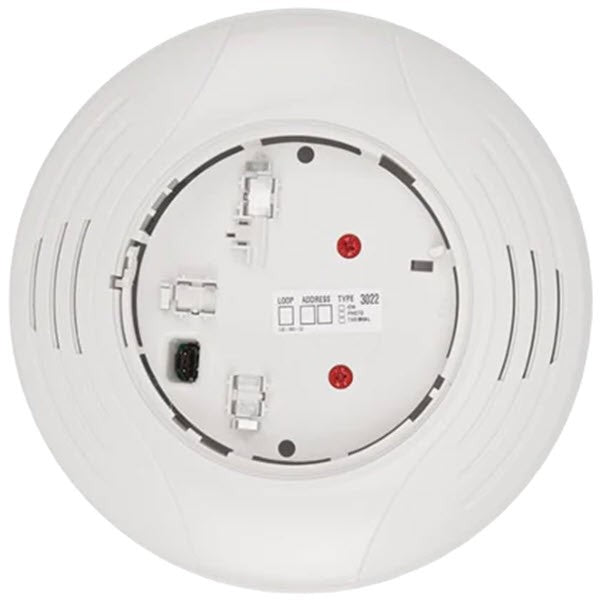

The System Sensor B200SR-WH is an intelligent, plug-in sounder base in white that adds local audible notification directly at the detector rather than relying solely on the building's separate notification circuit. It runs on an external 24VDC supply (16-33VDC full-wave rectified) independent of the SLC loop, and a removable jumper switches its output between a continuous tone and the ANSI Temporal 3 fire alarm pattern. It's a plug-in replacement for the same footprint as System Sensor's B501BH series bases, letting an installer add sounder capability to an existing detector location without rewiring the head.
Key Features
- Intelligent plug-in sounder base for local audible notification at the detector
- Jumper-selectable ANSI Temporal 3 pattern or continuous tone
- Runs from an independent external 24VDC supply, separate from the SLC
- Physically and electrically compatible with existing B501BH series base installations
Technical Specifications
- External Supply Voltage: 16-33 VDC (FWR)
- SLC Operating Voltage: 15-32 VDC
- Standby Current: 1mA maximum
- Sound Output: Greater than 85 dBA at 10 ft (UL reverberant room, 24V continuous tone)
- Base Diameter: 6.875"; Height (less sensor): 2.0"; Weight: 0.50 lb
Certifications
- Meets UL 268 and UL 464
