System Sensor CO1224T
System Sensor CO1224T
In stock!

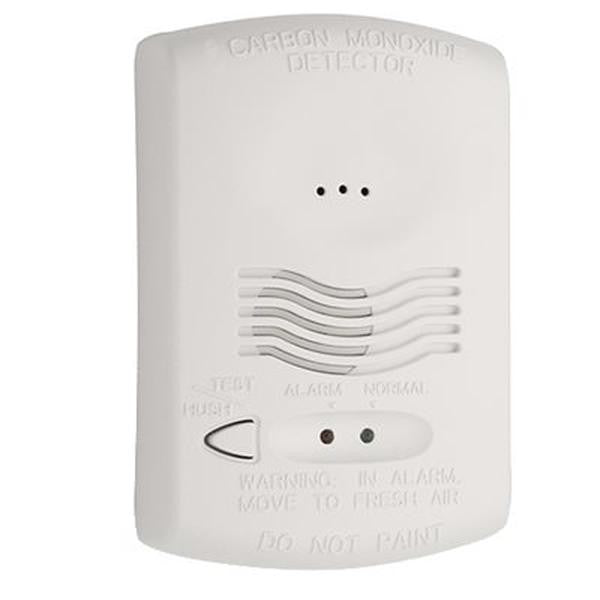

The System Sensor CO1224T is a 12/24VDC, 6-wire, system-monitored carbon monoxide detector built with RealTest technology, which lets the panel remotely initiate a functional self-test of the CO sensing element rather than requiring a technician to apply test gas on-site for every routine inspection. It mounts to a standard single-gang electrical box or directly to a wall/ceiling surface, and reports status through dual-color LED indication alongside dedicated alarm and trouble relay contacts wired back to the fire alarm or life-safety control panel.
Key Features
- RealTest technology for panel-initiated remote functional self-test
- Dual-color LED status indication
- Separate alarm and trouble relay contacts
- Wall or ceiling mount to a single-gang box or surface
Technical Specifications
- Operating Voltage: Nominal 12/24VDC, 10V min. to 33V max.
- Standby Current: 20mA; Alarm Current: 40mA max. (75mA in test)
- Alarm/Trouble Contact Rating: 30VDC @ 0.5A
- Audible Signal: 85dBA minimum at 10 ft in alarm
- Operating Temperature: 32-104°F (0-40°C); Humidity: 22-90% RH
Certifications
- UL 2075 Listed Gas and Vapor Detector/Sensor
