System Sensor OSI-R-SS
System Sensor OSI-R-SS
Only 2 left!

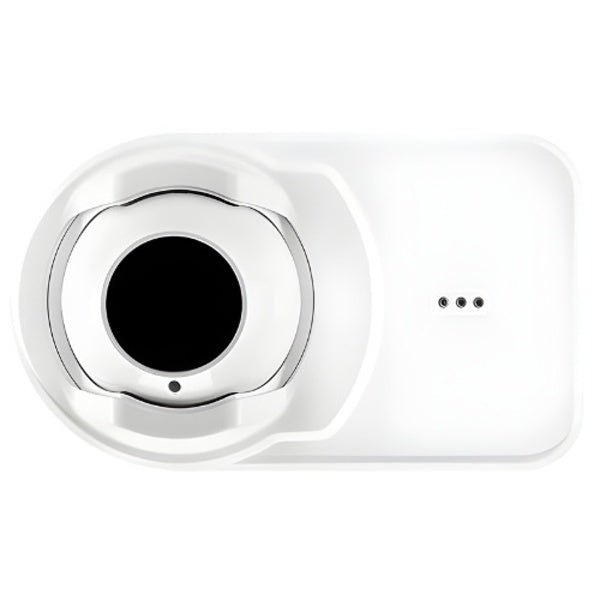

The System Sensor OSI-R-SS is a conventional, single-ended reflective-type beam smoke detector that combines an infrared transmitter and receiver in one housing, aimed across open space at a separate 8-inch reflector rather than requiring a matched receiver unit on the far wall. It detects smoke by measuring the obscuration of the reflected infrared beam and includes an integral sensitivity test feature, making it well suited to large open areas with high ceilings -- warehouses, atriums, gymnasiums -- where spot-type detectors would need many more devices to get equivalent coverage.
Key Features
- Single-ended reflective design: transmitter and receiver combined, reflector mounted separately
- Integral sensitivity test, no separate test equipment required
- Wide 12° field of view
- Long-range coverage suited to open, high-ceiling spaces
Technical Specifications
- Detection Principle: Infrared light obscuration (reflective beam)
- Coverage Range: 5-100m (16-328 ft)
- Field of View: 12°
- Wiring: 4-wire, conventional circuit
- Reflector: 8" reflector (included/matched)
Certifications
- UL Listed beam smoke detector
