System Sensor PC2RLED-LF
System Sensor PC2RLED-LF
Out of stock; call for lead time

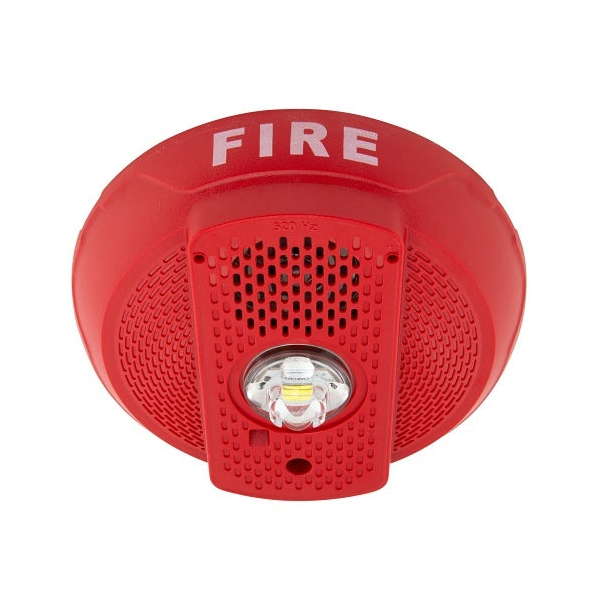

The System Sensor PC2RLED-LF is an L-Series ceiling-mount, red, low-frequency sounder strobe with a high-efficiency LED strobe, built to meet NFPA 72 requirements for sleeping-space notification. Its sounder produces a 520 Hz (±10%) square-wave tone, the frequency shown to more reliably wake sleepers than a standard horn, while a rotary switch on the device sets candela, tone and volume without opening the back box.
Key Features
- 520 Hz square-wave low-frequency tone for NFPA 72 sleeping-space compliance
- Rotary switch selects candela, tone and volume in the field
- Plug-in mounting plate for faster installation
- Built-in diagnostic test point for measuring device voltage with a DVM without removing it from the ceiling
Technical Specifications
- Candela settings: 15, 30, 75, 95, 115, 150, 177 cd
- Mounting: Ceiling, red housing
Certifications
- Meets NFPA 72 low-frequency (520 Hz) sleeping-space notification requirements
