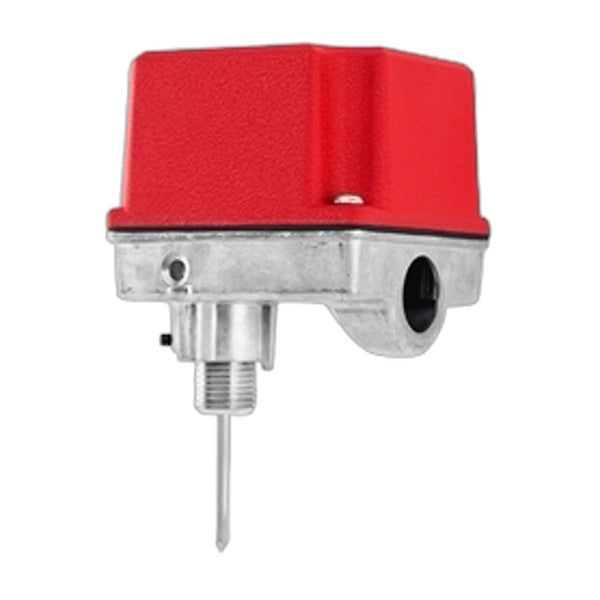

System Sensor PIBV2
System Sensor PIBV2
Only 1 left!
The System Sensor PIBV2 is a supervisory switch that monitors the open position of post indicator valves (PIVs), butterfly valves, and other wall-post or recessed control valves in a fire sprinkler system, so the fire alarm panel reports a supervisory condition the moment someone starts closing a valve that's supposed to stay open. It uses two synchronized SPDT (Form C) switches for 100% simultaneous activation of both the alarm panel and any local bell, and a bi-directional actuator lets it be installed on either rising-stem or falling-flag valve types without needing a different model for each.
Key Features
- Two synchronized SPDT (Form C) switches for simultaneous panel and local bell activation
- Bi-directional actuator works with rising-stem or falling-flag valve installations
- Single-side conduit entrance for a direct electrical pathway
- Tamper-resistant cover screws
Technical Specifications
- Rating: 125/250VAC or 24VDC, 10A/2.5A
- Enclosure: NEMA Type 3R
- Operating Temperature: -40°F to 120°F (-40°C to 49°C)
- Mount: 1/2" NPT nipple; Stem Extension: 5/8" min. to 3-5/32" max.
- Dimensions: 4-1/4" H x 3-1/2" W x 3-1/4" L
Certifications
- UL Listed supervisory switch
