System Sensor | SPSCWH

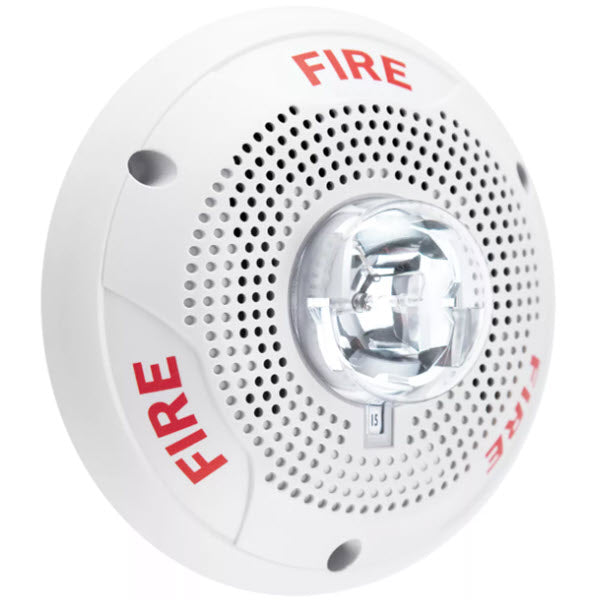

SpectrAlert® Advance speaker strobes can be used outdoors, in wet or dry applications, and provide reliable operation from −40 to 151 °F. They provide a broad frequency response range, low harmonic distortion, and maintain a high sound pressure level at all tap settings to provide accurate and intelligible broadcast of evacuation messages.

These speaker strobes include a variety of features that increase application flexibility and simplify installation, such as field-selectable settings, including candela, speaker voltage and power settings, and automatic selection of 12 or 24V operation enable installers to easily adapt devices to meet requirements.

• Weatherproof per NEMA 4X, IP56
• Rated from –40 to 151 °F
• Plug-in design reduces ground faults
• Universal mounting plate with onboard shorting spring that tests wiring continuity before devices are installed
• Field-selectable candela settings: 15, 15/75, 30, 75, 95, 110, 115- high candela models have settings: 135, 150, 177, and 185
• Automatic selection of 12 or 24V operation at 15 and 15/75 candela
• Rotary switch for speaker voltage (25 and 70.7Vrms) and power settings (1/4, 1/2, 1, and 2W)
• Tamper-resistant construction

• UL Listed: 75S0
• MEA Approved: 10-08-E
• CSFM: 7320-1653:201
