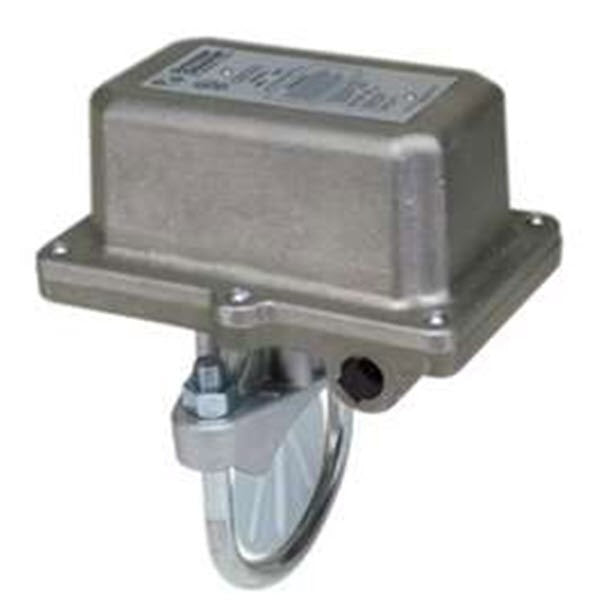

System Sensor WFD40EXP
System Sensor WFD40EXP
Detector Waterflow 4 Pipe Size Explosion Proof
Regular price
$2,121.99
Sale price
$2,121.99
Regular price
Shipping calculated at checkout.
Only 3 left!
Key Features
- 4-inch explosion-proof waterflow detector for steel pipe
- Compatible with schedule 10-40 steel pipe
- Two SPDT (Form C) contact sets for system integration
- UL, ULC Listed and FM Approved
- Hazardous location classified for Class I, Division 1, Groups B, C, D; Class II, Division 1, Groups E, F, G; and Class III, Division 1
Technical Specifications
- Flow rate: 4-10 GPM operating threshold
- Pressure rating: 450 PSI (UL)
- Maximum surge: 18 FPS
- Contact rating: 10.0A @ 125/250VAC; 2.5A @ 24VDC
- Operating temperature: 32°F to 160°F
- Overall dimensions: 6"H x 9"L x 6.5"W
- Shipping weight: 11.5 lbs
- Two 1/2" conduit openings for wiring
Certifications
- UL Listed
- ULC Listed
- FM Approved
- Hazardous location rated per NFPA and UL standards
