TAC Barber Colman MF2-PID-RC

TAC Barber Colman MF2-PID-RC

TAC Barber Colman MF2-PID-RC

RECON-Microflow Controller PI Deluxe 4DO 1AO

Vendor: TAC Barber Colman

Type: Power > Accessories

SKU: TC-H1P2-7126-RC

$663.64
$663.64
Shipping calculated at checkout.

Core Charge $325

Eligible for credit if core is returned within 30 days of order A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.

Out of stock; call for lead time

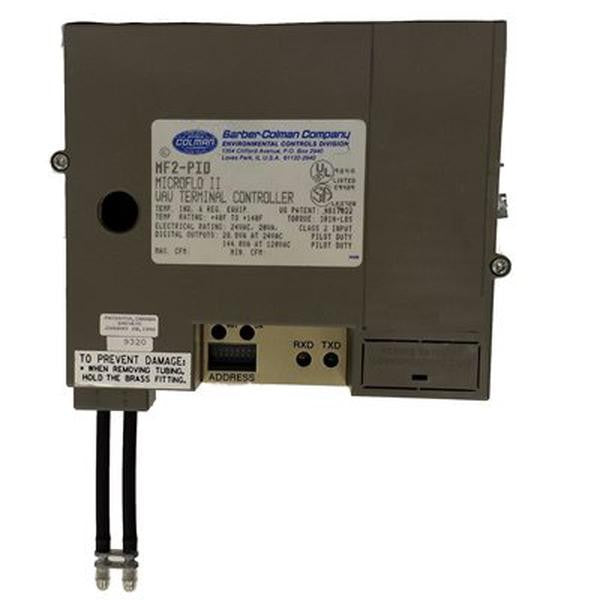

The TAC Barber Colman MF2-PID is a Pressure Independent Deluxe VAV (variable air volume) terminal controller for commercial HVAC systems. This building automation control module maintains constant volume and temperature in individual zones regardless of variations in duct pressure, making it ideal for energy-efficient climate control in office buildings, hospitals, and multi-zone facilities.

Key Features

  • Pressure Independent Deluxe (PID) control algorithm
  • Four digital outputs and one analog output for flexible control logic
  • Local setpoint adjustment (55-85°F / 10-30°C)
  • Operates on 24/120 VAC supply
  • Microprocessor-based control with 8 KB ROM and 1 KB EEPROM
  • Designed for VAV terminal unit applications

Technical Specifications

  • Operating Voltage: 24 or 120 VAC
  • Microprocessor: 83C196 with 8 KB ROM, 1 KB EEPROM
  • Contact Ratings: 28.8 VA @ 24 Vac or 144 VA @ 120 Vac (Form A SPST-N.O.)
  • Operating Temperature: 40-140°F (4-60°C)
  • Storage Temperature: -40 to 160°F (-40 to 71°C)
  • Humidity: 5-95% non-condensing
  • Wiring: Screw terminals, 14-24 AWG

Application

  • Commercial HVAC variable air volume terminal box control
  • Zone temperature and air volume regulation
  • Energy management and demand control ventilation systems
