Telguard HGDL0

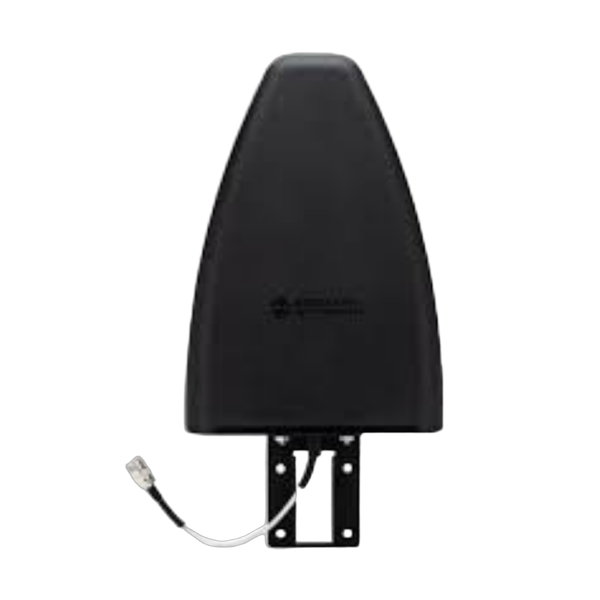

The Telguard HGDL-0 is a high-gain, wideband, directional external antenna for Telguard LTE alarm communicators, designed to extend cellular range and reliability at sites with weak carrier signal. It ships in a black, UV-protected, vibration-stabilized foam-filled enclosure with pole-mounting hardware included, and requires no ground plane for installation.

Key Features

• Directional design concentrates gain toward the carrier's cell tower for stronger signal at weak-coverage sites
• No ground plane required, simplifying mounting on poles or exterior walls
• Weatherproof, UV-protected, foam-filled enclosure with vibration-stabilized construction
• Pole-mounting hardware included

Technical Specifications

• Typical gain: 8-10 dBi
• Frequency range: 690-2700 MHz
• Connector: TNC male or Type-N female
• Compatibility: Telguard TG-4 and TG-7 commercial series communicators (TG-1X residential series with CTXL-12 adapter cable)

Certifications

• Manufactured for use with UL Listed Telguard LTE fire and security alarm communicators
