TG-PEM - Power and Zone Expansion Module - Protegis Fire & Safety

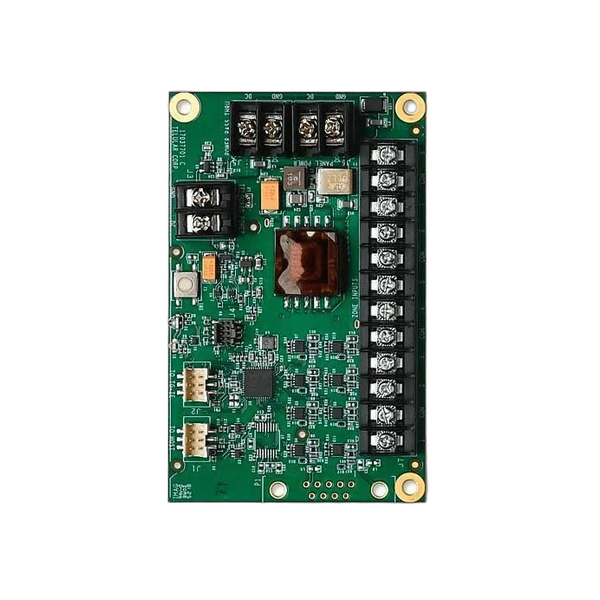

Telguard TG-PEM

Telguard TG-PEM

Module Power and Expansion

Vendor: Telguard

Type: Communication > Modules

SKU: TG-F1C1-B003

$162.99
$162.99
Shipping calculated at checkout.

Only 3 left!

The Telguard TG-PEM is a power and expansion module that adds eight configurable dry-contact zones to TG-7 series cellular communicators, expandable to 16 zones when two modules are used together. It draws its power directly from the connected fire alarm panel, so no separate transformer or outlet is needed at the install location.

Key Features

  • Adds 8 configurable dry-contact zones to TG-7 series communicators
  • Expandable to 16 zones using two modules
  • Per-zone configuration: normally open, normally closed, or supervised
  • Trip and restoral event reporting on all inputs
  • Panel-powered operation, no separate transformer required
  • Onboard LED status indicators

Technical Specifications

  • Zones: 8 dry-contact inputs (16 with dual modules)
  • Zone Modes: normally open, normally closed, or supervised
  • Power Source: 24 VDC from the connected fire alarm panel
  • Standby Current: 78 mA (no supervision); 82 mA (with supervision)
  • Maximum Transmit Current: 278 mA
  • Compatible with TG-7 and TG-7FS communicators

Certifications

  • UL 864, UL 1610 Listed
  • ULC S304, ULC S559 Listed
