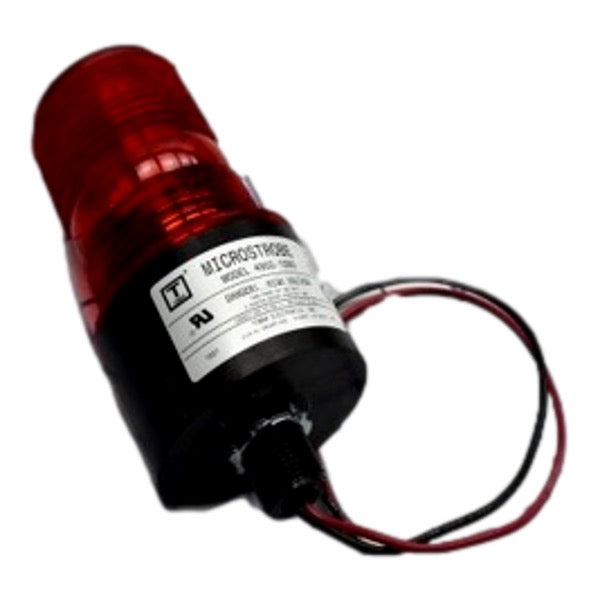

Tomar 495S-1280-R

The Tomar 495S-1280-R is a compact MICROSTROBE low-profile single-flash xenon strobe beacon with red lens designed for fire alarm notification and visual signal applications in commercial, industrial, and institutional facilities. Operating across a wide 12 to 80 VDC input voltage range, this strobe delivers 190,000 peak candlepower flashes at 1.9 joules per flash with minimal power draw (2.7 watts average), enabling integration into existing 12V, 24V, or higher-voltage alarm notification circuits without requiring separate power supplies. The 1/2-inch male pipe thread mounting facilitates rapid installation on walls, poles, or modal mounting hardware, while the fully potted polyurethane power supply resists moisture, vibration, and high-voltage transient damage.

Key Features

• Compact single-flash xenon strobe beacon with red lens
• Wide voltage range: 12-80 VDC for flexible installation options
• Exceptional brightness: 190,000 peak candlepower per flash
• Low power consumption: 2.7 watts average draw
• Plug-in replaceable xenon lamp and Lexan lens for field service
• 1/2-inch male pipe thread mount for standard signaling mounting hardware
• Fully potted polyurethane power supply for environmental protection
• Polarity-protected circuitry with radio-frequency and spike-voltage filtering

Technical Specifications

• Voltage Input: 12-80 VDC (wide operating range)
• Power Output: 2.7 watts average
• Flash Energy: 1.9 joules per flash
• Peak Brightness: 190,000 candlepower
• Lens Color: Red (fire alarm standard)
• Physical Dimensions: 5 inches height x 3 inches diameter (127 mm x 76 mm)
• Weight: 0.6 lbs (0.27 kg)
• Mounting: 1/2-inch male pipe thread
• Lamp Type: Plug-in replaceable xenon
• Housing: Lexan lens, fully potted polyurethane power supply

Certifications

• Tomar MICROSTROBE standard for fire alarm notification
• UL listed visual signaling device for fire alarm systems
